HCL Controller Dayemity RDS 2CH | LED Controllers
€31.78 Tax included
In stock ( 45 szt. )

shopping_bag

Bulk orders?

Special prices for bulk orders

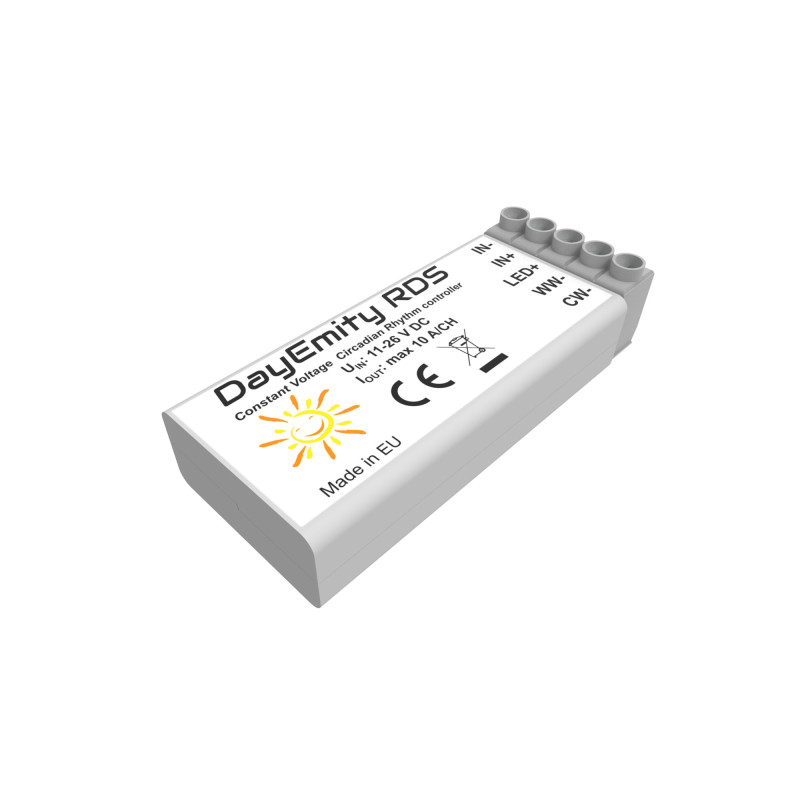

LED Controller HCL Dayemity RDS 2CH

LED Controller HCL Dayemity RDS 2CH

I accept privacy policy rules

Delivery and Returns

Complaints and returns: Learn more

Package tracking available after shipment: Check order status

Delivery within 3-4 days

Available shipping methods:
  • GLS Courier - International: Price depends on destination country

You might also like

search
  • DAYEMITY.jpg

LED Controller HCL Dayemity RDS 2CH

Catalog Number: 5907426120501
Reference: LWDAYERDSJ497-XA-CV
  • Brand: Cezos
  • Height: 16 mm
  • Control: HCL
  • Max Output Current: 10 A
  • Max moc wyjściowa: 240 W
  • Supply Voltage: 11 - 26 V DC
  • Calibration Method: Automatic
  • Enclosure: No
  • Length: 67 mm
  • Warranty: 2 years

Similar

HCL Dayemity RDS 2CH Controller
proxi
The DayEmity RDS controller from CEZOS is an excellent example of an HCL device. It automatically adjusts the color temperature of LED light throughout the day, synchronizing with the users natural circadian rhythms. This results in better sleep quality, improved mood, and increased work productivity. Human Centric Lighting (HCL) is an advanced technology that uses LED light to support circadian rhythms. Through automatic color temperature adjustment during the day, HCL can improve the quality of life and health of users.
proxi

Product Features

  • Dimensions: 665 x 275 x 155 mm
  • Maximum Output Current: 10 A / channel
  • Power Supply Type: Constant voltage (11 - 26 V DC)
  • Time Calibration: RDS (Radio Data System)
  • Maximum Total Output Power: 240 W
  • Recommended CCT for LEDs: 2700K and 6500K
  • Ambient Temperature: 0 - 50°C
proxi

Functionality and Benefits

  • Automatic Color Temperature Adjustment: The controller adjusts the light according to the time of day, supporting natural circadian rhythms. Warm light in the evening promotes relaxation, while cool light in the morning boosts activity.
  • Warm-up Function: After turning on, the controller gradually increases the color temperature, providing a smooth transition to the proper daylight lighting.
  • Low Power Consumption and High Efficiency: The controller features low energy consumption, resulting in savings and a reduced environmental impact.
  • Automatic Time Synchronization via RDS: Thanks to automatic synchronization, the controller accurately adjusts the lighting to actual time conditions.

Usage Instructions:

  • 1. Connect the controller to the LED light source and power supply.
  • 2. Ensure that the power supply has the appropriate parameters to power all connected devices.
  • 3. When connecting the controller to the LED light source and power supply, pay attention to polarity.
  • 4. The wires between the power supply, controller, and LED modules should be as short as possible.
  • 5. Provide adequate cooling if the temperature on the housing exceeds 50°C.
Brand
Cezos
Height
16 mm
Width
5 28 mm
Control
HCL
Max Output Current
10 A
Max moc wyjściowa
240 W
Supply Voltage
11 - 26 V DC
Calibration Method
Automatic
Enclosure
No
Length
67 mm
Warranty
2 years
Bestseller
No
New
No
Weight
0,0200
Depth
5
ASIN
B0DWST6S9Y
